ASME/ANSI B16.5 SLIP-ON (SO) PIPE FLANGES MANUFACTURER IN INDIA
MANUFACTURER/EXPORTER OF HIGH QUALITY SLIP-ON FORGED FLANGES
CARBON, ALLOY, STAINLESS STEEL SLIP-ON FLANGES

Wel-Tech Industries is a specialised manufacturer of high quality ASME/ANSI/DIN standard slip-on flanges in India. We offer immediate delivery programs for standard size of carbon steel slip-on flanges and stainless steel slip-on flanges. Slip-on flanges manufactured in special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs.

Slip-on pipe flange usually slips over the pipe. Slip-on pipe flanges are typically made with an inside diameter of the pipe flange slightly larger than the outside diameter of the pipe. This allows the slip-on flange to slip over the pipe. Slip-on pipe flanges are welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on pipe flanges can sometimes also have a boss/ring or hub, and can be made with a bore to suit either pipe or tube. Ring pipe flanges and hub pipe flanges are both considered slip-on pipe flanges because they both slip over the pipe.

Slip-on flanges are generally preferred by users over weld neck flanges, as they are a cheaper option than weld neck flange and the fact that less accuracy is required when cutting pipe to length.

Slip-on flanges are available with raised, flat or RTJ faces, and are also available in orifice configurations.

We offer slip-on pipe flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.

Our products are widely exported to countries and regions such as the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.

Slip-on Flange, SO Forged Flanges Production Range

Stainless Steel Slip-On (SO) Flange

Stainless Steel Slip-On (SO) Flange

Alloy Steel, Carbon Steel Slip-On (SO) Flange

Alloy Steel, Carbon Steel Slip-On (SO) Flange

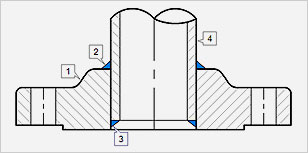

1-Slip On flange | 2-Filled weld outside | 3-Filled weld inside | 4-Pipe

1-Slip On flange | 2-Filled weld outside | 3-Filled weld inside | 4-Pipe



Size: 1/2″ (15 NB) to 48″ (1200NB)

Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.

Carbon Steel Slip-on Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Slip-on Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Alloy Steel Slip-on Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Slip-on Flanges: Duplex, Super Duplex, Nickel Alloys

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Value Added Services: CNC Machining, Customised Flanges

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Wel-Tech Industries, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
